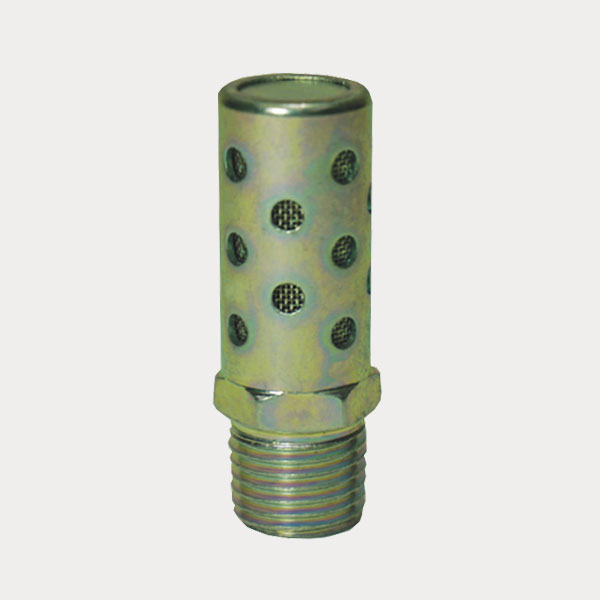

HFSM/FHFSM/HFSS Series - High Flow Steel Muffler
SPECIFICATIONS
| Model |
HFSM-18 |
HFSM-28 |
HFSM-38 |
HFSM-48 |
HFSM-68 |
HFSM-88 |
HFSM-128 |
HFSM-148 |
HFSM-200 |
| Connection (NPTM) |
1/8” |
1/4” |
3/8” |
1/2” |
3/4” |
1” |
1-1/4” |
1-1/2” |
2” |
| Overall Length (IN.) |
1-5/16” |
1-11/16” |
2-7/64” |
2-41/64” |
3-15/64” |
3-25/32” |
4-27/64” |
4-15/16” |
5-19/32” |
| Hex (IN.) |
7/16” |
9/16” |
11/16” |
7/8” |
1-1/16” |
1-5/16” |
1-3/4” |
2” |
2-3/8” |
| Body Material |
Zinc-Plated Steel (Zn-Fe) |
Zinc-Plated Steel (Zn-Fe) |
Zinc-Plated Steel (Zn-Fe) |
Zinc-Plated Steel (Zn-Fe) |
Zinc-Plated Steel (Zn-Fe) |
Zinc-Plated Steel (Zn-Fe) |
Zinc-Plated Steel (Zn-Fe) |
Zinc-Plated Steel (Zn-Fe) |
Zinc-Plated Steel (Zn-Fe) |
| Element Material |
50 Mesh Stainless Steel Screen |
50 Mesh Stainless Steel Screen |
50 Mesh Stainless Steel Screen |
50 Mesh Stainless Steel Screen |
50 Mesh Stainless Steel Screen |
50 Mesh Stainless Steel Screen |
50 Mesh Stainless Steel Screen |
50 Mesh Stainless Steel Screen |
50 Mesh Stainless Steel Screen |
| Max Operating Pressure |
300 psi (21.1 kgf/cm²) |
300 psi (21.1 kgf/cm²) |
300 psi (21.1 kgf/cm²) |
300 psi (21.1 kgf/cm²) |
300 psi (21.1 kgf/cm²) |
300 psi (21.1 kgf/cm²) |
300 psi (21.1 kgf/cm²) |
300 psi (21.1 kgf/cm²) |
300 psi (21.1 kgf/cm²) |
| Operating Temperature |
35~160℉ (1.6~70℃) |
35~160℉ (1.6~70℃) |
35~160℉ (1.6~70℃) |
35~160℉ (1.6~70℃) |
35~160℉ (1.6~70℃) |
35~160℉ (1.6~70℃) |
35~160℉ (1.6~70℃) |
35~160℉ (1.6~70℃) |
35~160℉ (1.6~70℃) |
| Weight(Approx.) (OZ.) |
0.38 |
0.69 |
1.22 |
2.14 |
3.67 |
6.61 |
11.71 |
14.84 |
23.48 |
| Unit Pack (EA.) |
10 |
10 |
5 |
5 |
1 |
1 |
1 |
1 |
1 |

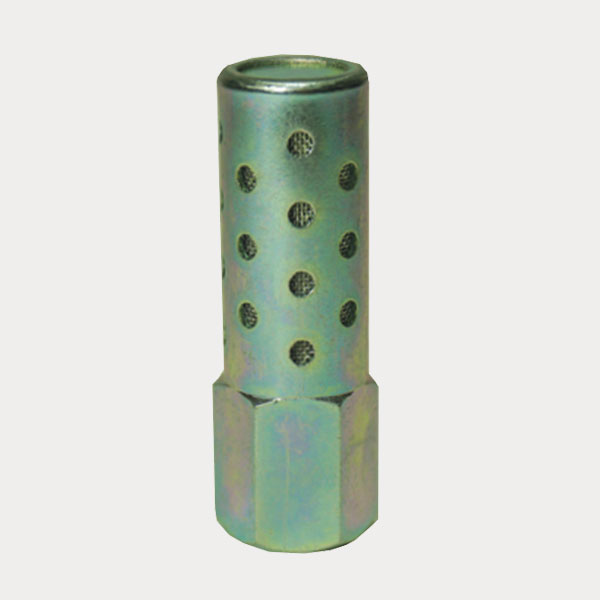

FHFSM
SPECIFICATIONS
| Model |
FHFSM-18 |
FHFSM-28 |
FHFSM-38 |
FHFSM-48 |
| Connection (NPTM) |
1/8” |
1/4” |
3/8” |
1/2” |
| Overall Length (IN.) |
1-45/64” |
2-13/64” |
2-23/32” |
3-7/32” |
| Hex (IN.) |
7/16” |
9/16” |
11/16” |
7/8” |
| Body Material |
Zinc-Plated Steel (Zn-Fe) |
Zinc-Plated Steel (Zn-Fe) |
Zinc-Plated Steel (Zn-Fe) |
Zinc-Plated Steel (Zn-Fe) |
| Element Material |
50 Mesh Stainless Steel Screen |
50 Mesh Stainless Steel Screen |
50 Mesh Stainless Steel Screen |
50 Mesh Stainless Steel Screen |
| Max Operating Pressure |
300 psi (21.1 kgf/cm²) |
300 psi (21.1 kgf/cm²) |
300 psi (21.1 kgf/cm²) |
300 psi (21.1 kgf/cm²) |
| Operating Temperature |
35~160℉ (1.6~70℃) |
35~160℉ (1.6~70℃) |
35~160℉ (1.6~70℃) |
35~160℉ (1.6~70℃) |
| Weight(Approx.) (OZ.) |
0.80 |
1.55 |
2.65 |
4.60 |
| Unit Pack (EA.) |
10 |
10 |
5 |
5 |

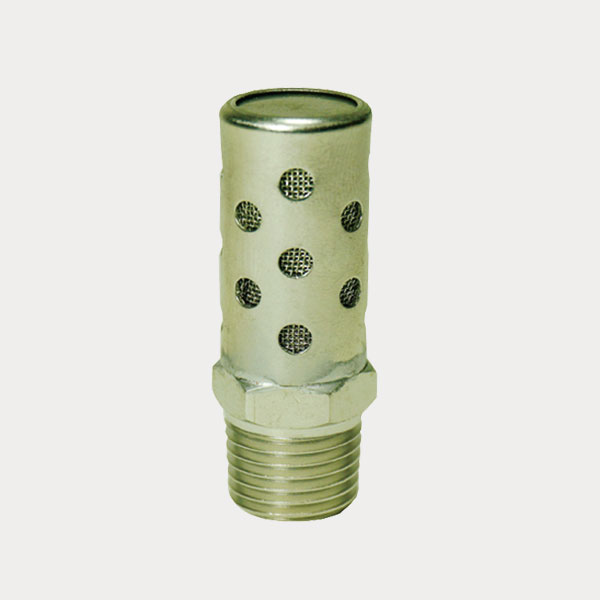

HFSS
SPECIFICATIONS
| Model |
HFSS-18 |
HFSS-28 |
HFSS-38 |
HFSS-48 |
HFSS-68 |
HFSS-88 |
| Connection (NPTM) |
1/8” |
1/4” |
3/8” |
1/2” |
3/4” |
1” |
| Overall Length (IN.) |
1-3/8” |
1-11/16” |
2-7/64” |
2-41/64” |
3-15/64” |
3-25/32” |
| Hex (IN.) |
7/16” |
9/16” |
3/4” |
7/8” |
1-1/16” |
1-3/8” |
| Body Material |
SUS304 Stainless Steel |
SUS304 Stainless Steel |
SUS304 Stainless Steel |
SUS304 Stainless Steel |
SUS304 Stainless Steel |
SUS304 Stainless Steel |
| Element Material |
50 Mesh Stainless Steel Screen |
50 Mesh Stainless Steel Screen |
50 Mesh Stainless Steel Screen |
50 Mesh Stainless Steel Screen |
50 Mesh Stainless Steel Screen |
50 Mesh Stainless Steel Screen |
| Max Operating Pressure |
300 psi (21.1 kgf/cm²) |
300 psi (21.1 kgf/cm²) |
300 psi (21.1 kgf/cm²) |
300 psi (21.1 kgf/cm²) |
300 psi (21.1 kgf/cm²) |
300 psi (21.1 kgf/cm²) |
| Operating Temperature |
35~160℉ (1.6~70℃) |
35~160℉ (1.6~70℃) |
35~160℉ (1.6~70℃) |
35~160℉ (1.6~70℃) |
35~160℉ (1.6~70℃) |
35~160℉ (1.6~70℃) |
| Weight(Approx.) (OZ.) |
0.32 |
0.72 |
1.20 |
2.40 |
4.10 |
7.00 |
| Unit Pack (EA.) |
5 |
5 |
5 |
5 |
1 |
1 |
