AP10S Series, Miniature Pressure Switch, for micro pressure
AP10S1 , AP10S2
Feature

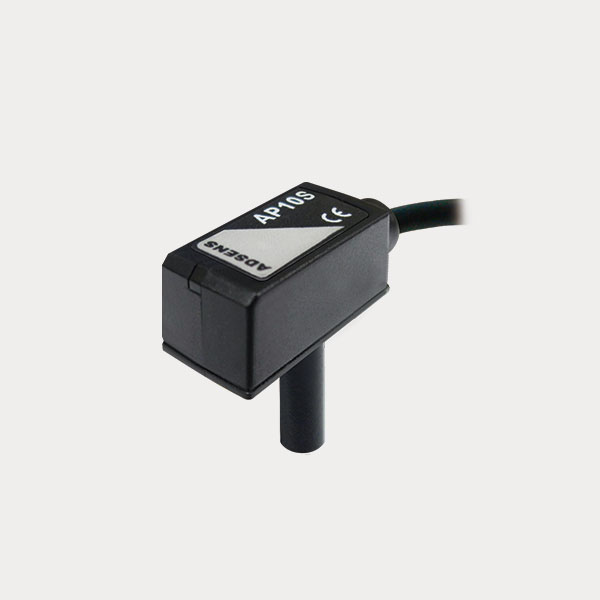

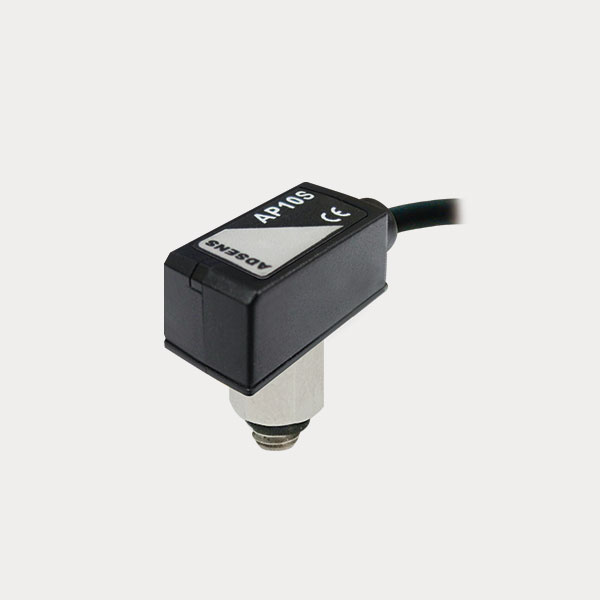

- Simple installation, plug-in port or thread-in fitting
- Compact size : 26x10x10.4mm
- Setting pressure range :
Analog : Micro pressure S1 (0 ~ 10 kPa)
Micro pressure S2 (0 ~ 5 kPa)
SPECIFICATIONS
| Analog |
Analog |
Analog |
| Model |
AP10S1 |
AP10S2 |
| Setting pressure range |
0~10 kPa (0~1.45 psi) |
0~5 kPa (0~0.725 psi) |
| Withstand pressure |
20 kPa (2.9 psi) |
20 kPa (2.9 psi) |
| Fluid |
Filtered air, Non-corrosive/Non-flammable gas |
Filtered air, Non-corrosive/Non-flammable gas |
