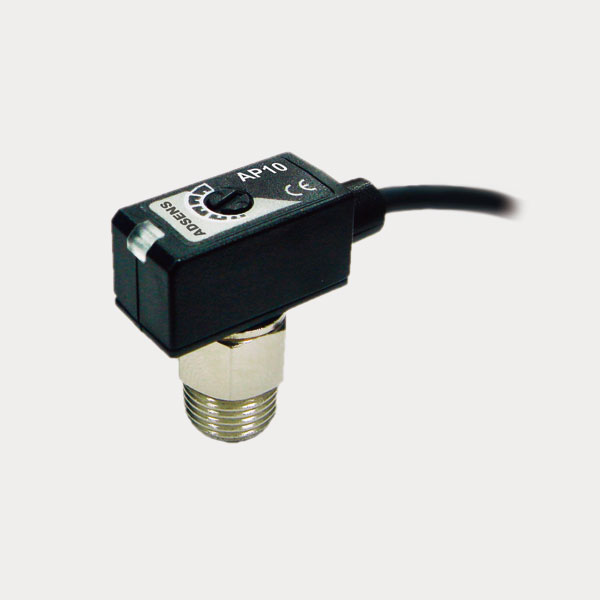

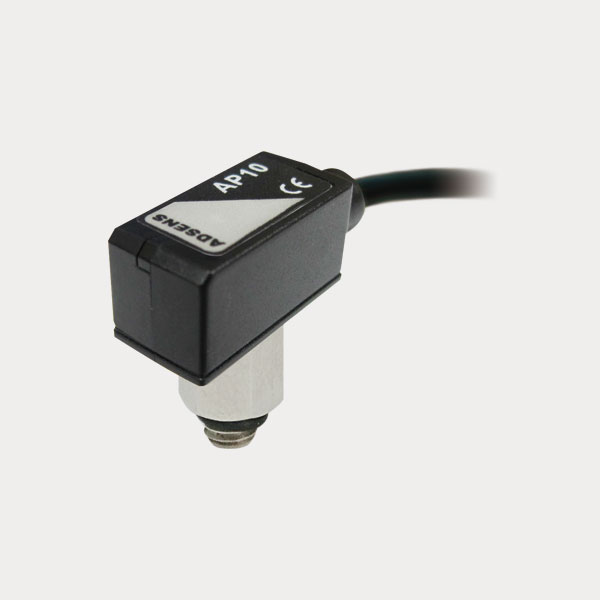

AP10 Series, Miniature Pressure Switch
SPECIFICATIONS
| Type |
Switch |
Switch |
Analog |
Analog |
Analog |
Analog |
Analog |
| Model |
AP10V |
AP10P |
AP10C |
AP10L |
AP10V |
AP10R |
AP10P |
| Setting pressure range |
-101.3~0 kPa (-29.9~0 inHg) |
0~0.6 MPa (0~87 psi) |
-100~100 kPa (-14.5~14.5 psi) |
0~100 kPa (0~14.5 psi) |
-101.3~0 kPa (-29.9~0 inHg) |
-101~500 kPa (-14.6~72.5 psi) |
0~1.0 MPa (0~145 psi) |
| Withstand pressure |
0.6 MPa (87 psi) |
1.5 MPa (217.5 psi) |
0.2 MPa (29 psi) |
0.2 MPa (29 psi) |
0.2 MPa (29 psi) |
1.5 MPa (217.5 psi) |
1.5 MPa (217.5 psi) |
| Fluid |
Filtered air, Non-corrosive/Non-flammable gas |
Filtered air, Non-corrosive/Non-flammable gas |
Filtered air, Non-corrosive/Non-flammable gas |
Filtered air, Non-corrosive/Non-flammable gas |
Filtered air, Non-corrosive/Non-flammable gas |
Filtered air, Non-corrosive/Non-flammable gas |
Filtered air, Non-corrosive/Non-flammable gas |
